⚡750W Rear Hub Dirwin Motor w/ 80Nm of Torque
⚡48V/15Ah Downtube Integrated LG or BAK Lithium-ion Removable Battery
⚡26" x 4" Kenda Fat Tires
Dirwin Pioneer Step-Thru Ebike Description
Are you looking for a low-step electric bike that is powerful enough for off-road mountain trails? The Dirwin Pioneer step-thru is perfect for those rough conditions, from rugged off-trails to gravel paths. It's loaded with a 750W rear hub motor that outputs tons of torque, and the rigid 6061 aluminum alloy frame.

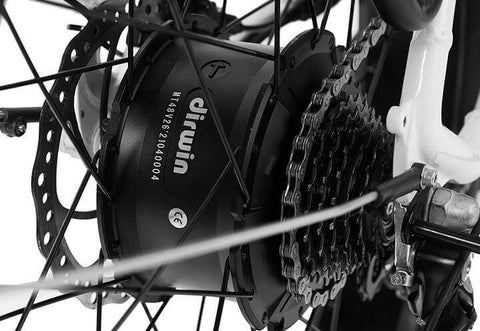

High-Performance Motor
Sand, gravel, snow... conquer all-terrains with Dirwin Pioneer's step-thru high-performance 750W rear-drive motor. It delivers up to 80Nm of torque, which will give you all the power you need. It won't leave you stranded and you have absolute control of the Power delivery with Shimano's 7-speed Altus gears and 5-levels of pedal assistance.
Long-Lasting Battery
Dirwin Pioneer step-thru is equipped with a high capacity downtube-integrated 48V/15Ah lithium battery with LG or BAK cells, giving you an extended range per charge. The battery is also removable so extended tours lasting for days are no longer a problem. Take your time and enjoy your adventure!

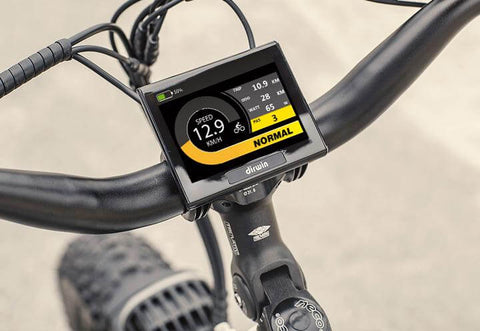

Color Screen Display
The Pioneer step-thru comes with a clear 3.5” TFT display, which has great visibility in all conditions. It features all the information you need such as speed, odometer, battery charge level, and more.

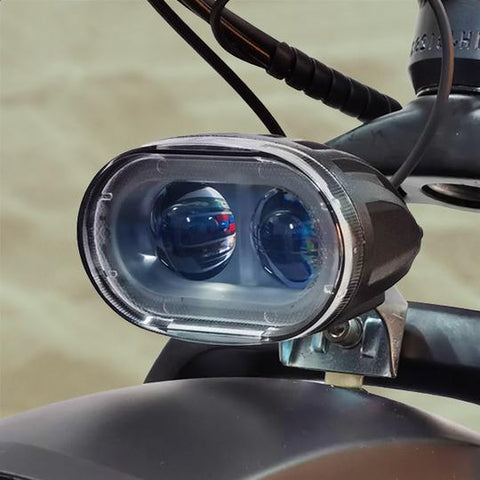

Bright 48V LED Headlight
The Luminus Flux headlight has an output of 1100 Lumens and an effective range up to 80 meters. Rain or shine this powerful and bright headlight will keep the road illuminated and make you visible to approaching traffic, cyclists and pedestrians.

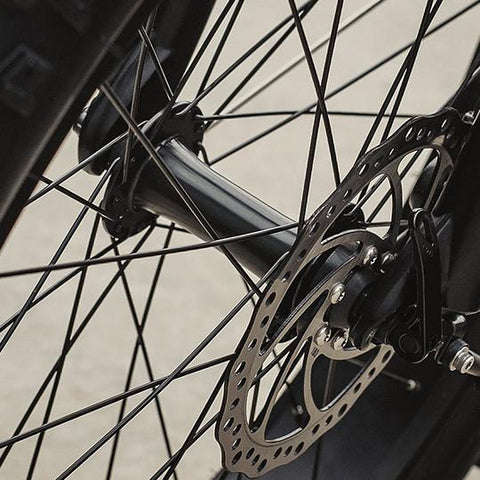

Hydraulic Brakes
In tough terrain and fast speeds, you need to be able to trust the braking ability of your bike. That is why the Pioneer is fitted with powerful 180mm hydraulic disc brakes. These provide exceptional precision and stopping power.

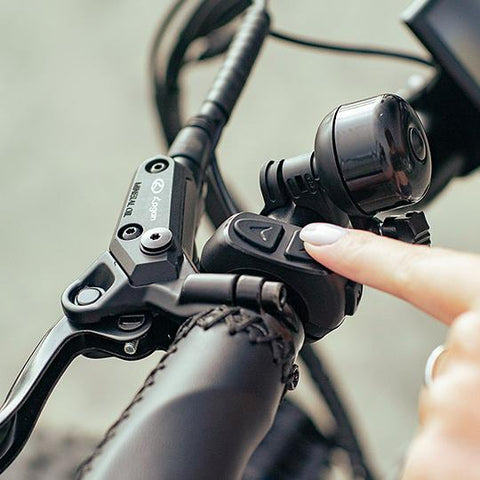

Adjustable Handlebar With Easy To Use Controls
The handlebar features all the controls for the gears and power assistance system (PAS) that you need. This includes the assistance level controls, display, half-twist throttle, and Shimano gear shift lever. It's even fitted with a nice bell!
Shimano 7-Speed Gear System
Dirwin uses only the highest Shimano gears systems that give you the reliability and adjustability that you need. In combination with the motor, you can easily set how fast or heavy you want to pedal.

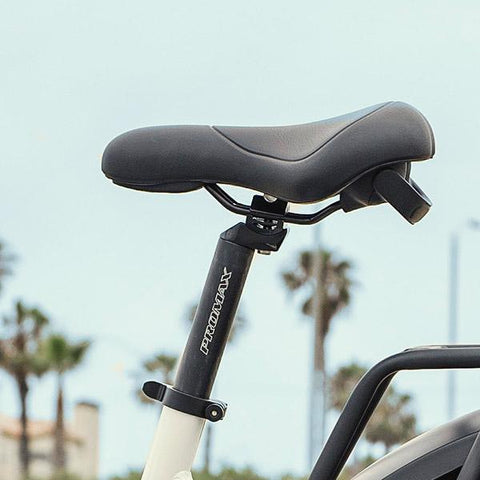

Comfortable Saddle
An easily adjustable saddle combined with the adjustable handlebar will make sure that anyone can find a safe and comfortable riding position.

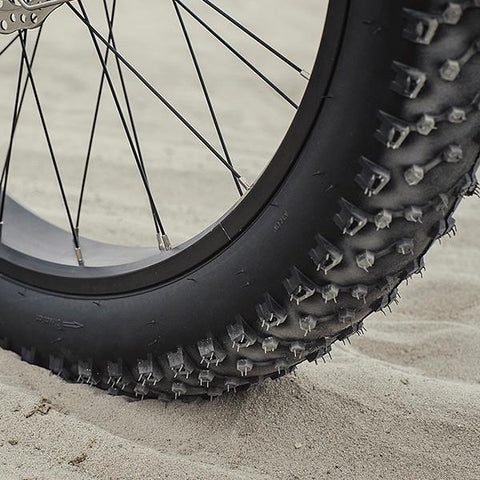

Heavy-Duty 26" x 4" Fat Tires
The 26" x 4" fat tires are highly durable and their knobby treads are designed to operate in extreme riding conditions.

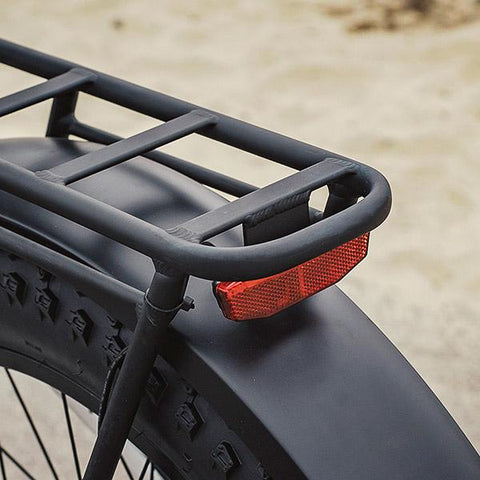

Electric Rear Light
Safety first. Not only the headlight but the rear too has a powered 48V LED light that will keep you visible in the dark and bad weather.

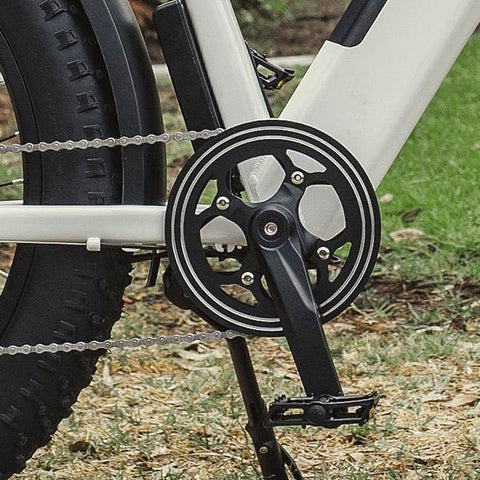

High-Quality Crankset
The durable aluminum crankset is built and adjusted perfectly with the Shimano gear set to protect the chain and decrease friction thus delivering an optimal pedaling experience.
Dirwin Pioneer Ebike Specification
- Motor: 750W Rear Hub Dirwin Motor w/ 80Nm of Torque
- Battery: 48V/15Ah Downtube Integrated LG or BAK Lithium-ion Removable Battery
- Charger: US-Standard 2A Smart Charger
- Charge Time: 6-9 Hours
- Gears: 7-Speed Shimano Altus Derailleur & 5-Level Pedal Assist System w/ Right Side Half Twist Throttle
- Frame: A6061 Aluminum Alloy Frame
- Display: 3.5" TFT Color Display
- Controller: 48V/22A
- Suspension: Hydraulic Fork w/ Lockout
- Brakes: Lagon Hydraulic Disc Brakes w/ 180mm Rotors
- Tires: 26" x 4" Heavy-Duty Kenda Fat Tires
- Saddle: HQ-Comfort Saddle
- Accessories: LED Headlight, Tail Light, Fenders, Rear Rack, Bell & Optional Front Basket
- Recommended Rider Height: 5'-5" to 6'-4"
- Bike Weight: 74.9 Lbs.
- Max Load Capacity: 350 Lbs.
- Box Dimensions & Weight: 62.5" x 11.8" x 34.2" (97 Lbs.)
- Assembly: The Pioneer ST comes mostly assembled. Final assembly includes attachment of the handlebar, pedals, front wheel, light, fender and bell. Please see the assembly video below.
- Tools Required: Multi-Purpose Tool, Quick Release Skewer (Included)
Shipping: Free shipping to the lower 48. We cannot ship this brand to Alaska or Hawaii at this time. Shipping to Canada is $200/bike.

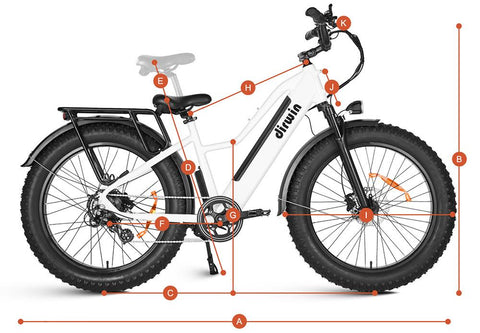

Dirwin Pioneer Ebike Geometry
A. Total Length: 74.8"
B. handlebar Height: 45.5"
C. Wheelbase: 45"
D. Minimum Seat Height: 30"
E. Maximum Seat height: 35.5"
F. Chain Stay Length: 20"
G. Standover Height: 29.5"
H. Top Tube Length: 23"
I. Wheel Diameter: 29"
J. Head Tube Length: 6"
Dirwin Pioneer Step-Thru Optional Front Basket Specifications
Material: Aluminum
Dimensions: L 14.3" x W 12.2" x H 6.0"
Applicable: Seeker/Pioneer
Maxload: 35 Lbs.
Weight: 4.4 Lbs.
Dirwin Pioneer Owner's Manual
Dirwin Pioneer Step-Thru Assembly Instruction Video
